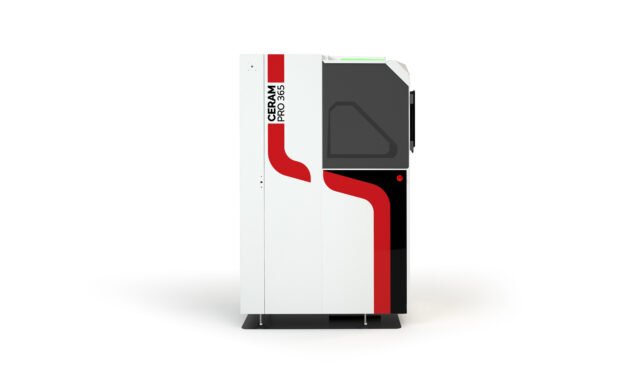

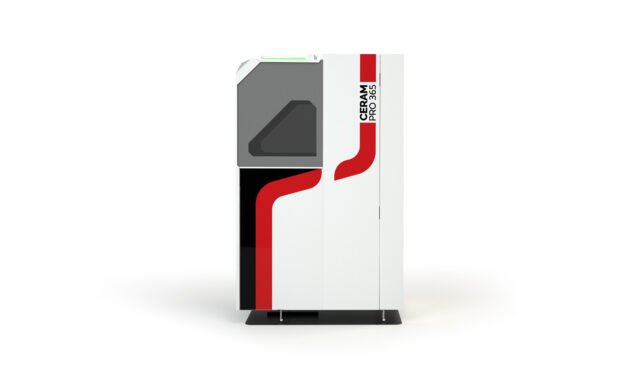

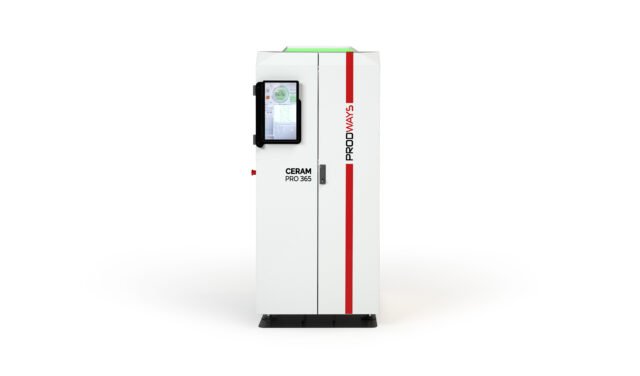

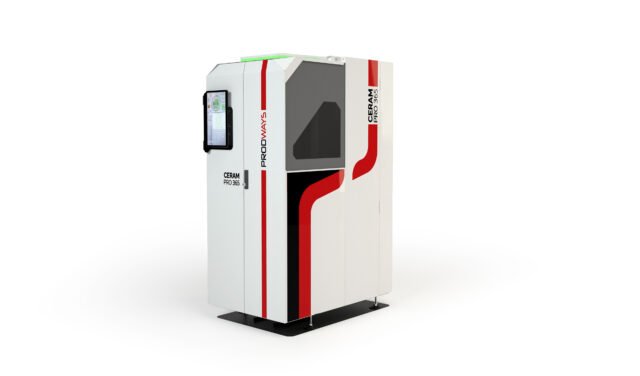

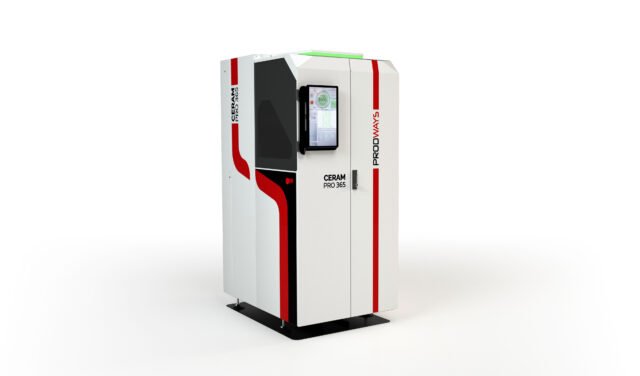

CERAM PRO 365
The CERAM PRO 365 is the complete solution in ceramic 3D printing offered by Prodways Printers. Designed to work seamlessly with SILICA SICAST 1200 and ALUMINA A100 resins from TETHON 3D, a trusted partner in the development of materials and applicative support, this system is based on patented MOVINGLight® top-down technology. Ideal for a wide range of industrial applications, whether for investment casting, technical ceramics, or research and development, the CERAM PRO 365 delivers exceptional flexibility and precision.
Description
Number of DLP Heads
Single DLP head
Applications
Investment casting related applications/technical ceramics open for R&D
Technology
UV-LED DLP, wavelength 365 nm
(385 and 405 nm versions available on request)
Materials
Compatible with TETHON 3D’s SILICA SICAST 1200 and ALUMINA A100 resins
Max. Buil envelope size (LxLxH)
264 x 328 x 350 mm |10.3 x 12.9 x 13.7 inches.
Native pixel size (X, Y)
31 μm (0.0016 inches)
Layer thickness*
50 – 175 μm
0.001 to 0.006 inches
Platform type
Perforated metal platform
Build platform (LxW)
From 66 x 41 mm to 264 x 328 mm
Vat build heigh
Up to 350 mm – Starts as low as 500 mL initial fill
Printer size (LxLxH)
855 x 1100 x 1780 mm | 33.7 x 43.3 x 70.1 inches
Weight
510 Kg | 1125 lbs.
Power requirements
210 – 240 VAC, 8-12 A, 50/60 Hz
Projector Power
130 mW/cm² for 365 nm
